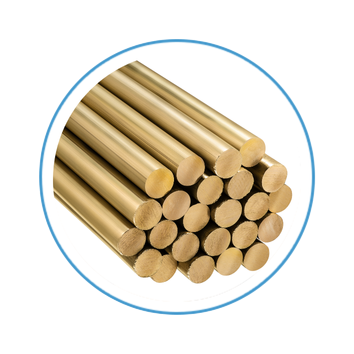

Cupronickel
CuNi14Al3 or CuNi14Al2
ADVANTAGES IN APPLICATION:
- Very high mechanical properties
- Non-magnetic
- Good resistance to impact and fatigue
- Non-Sparking
- Very good resistance to corrosion and oxidation in the marine environment
Chemical composition
| % CU | % NI | % AL | |
|---|---|---|---|
| NOMINAL | Residues | 14 | 3 |
| MINI | 13 | 2.8 | |
| MAXI | 15 | 3.3 |
Mechanical characteristics
| SN | RM | RP 0.2 | A 5% | HB1 | |
|---|---|---|---|---|---|
| Section < Ø 50mm | Nominal | 880 Mpa | 630Mpa | 13 | 260 |
| Mini | 780 Mpa | 590 Mpa | 10 | 215 | |
| Section ≥ Ø 50mm | Nominal | 880Mpa | 630Mpa | 10 | 240 |
| Mini | 740 Mpa | 540Mpa | 7 | 205 |
The values presented represent average figures.
While this information has been carefully verified,
METAL INDUSTRIEL cannot be held liable for its use.
